CDH Black Bicycle Felt Faker Gas Frame 3.4L &Mag Wheels &26"

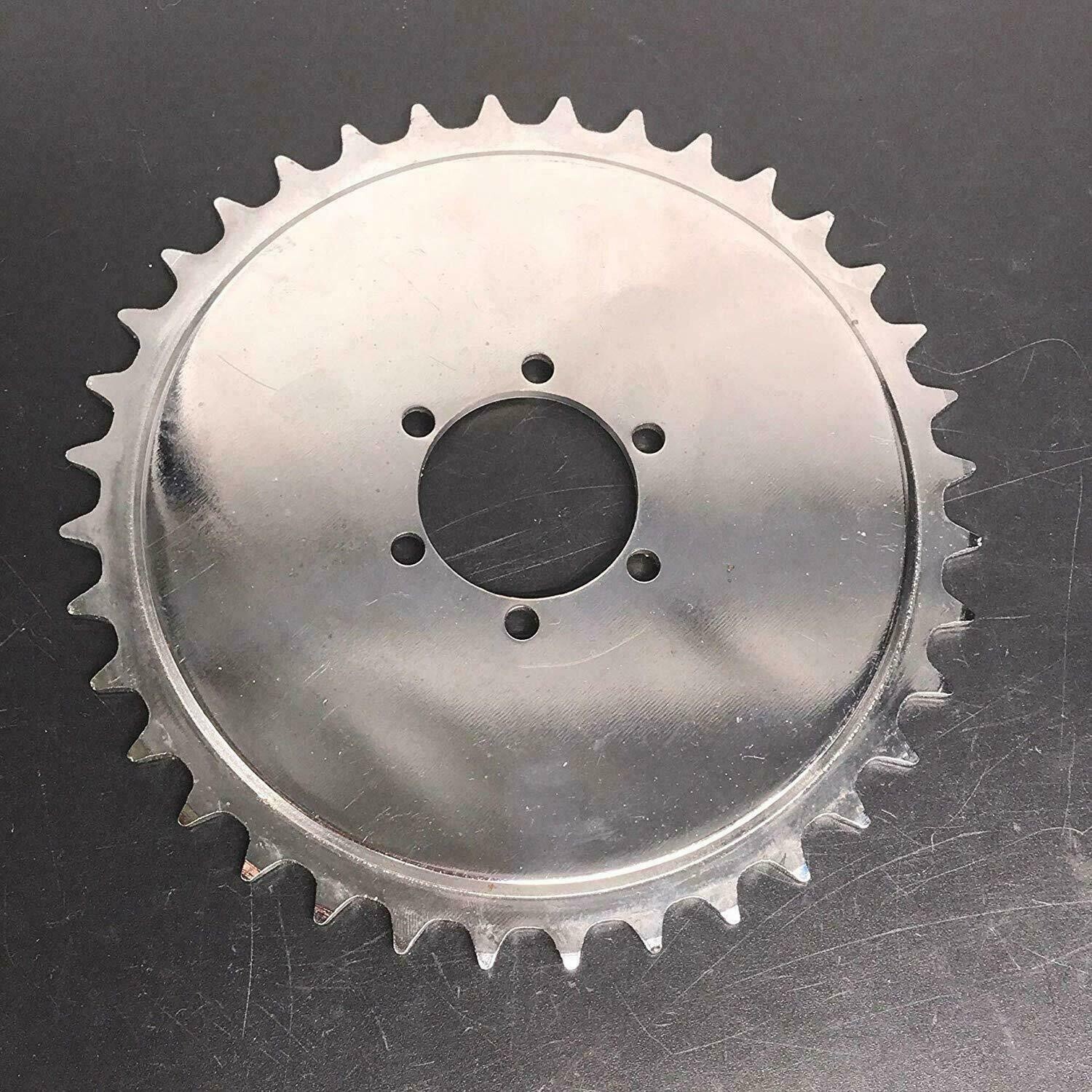

1. Package include: 1pc 3.4L frame(Black), 1 set 26" mag wheels, 1pc Sprocket, 1pc NON-Suspension Fork, 1pc Headset
2. Please clean the black color painting on thread of bottom bracket before you assemble the crankset.
3. Note: If buyers' bike rear wheel is with quick release,we suggest buyers do not buy the gas frame unless buyers are professional
4. For 2-Stroke & 4-Stroke Engines.
5. Requirement on headset size:1 1/8";
6. Bottom bracket 1.732" /44mm out diameter;
7. The width and Inner Diameter(including depth of screw) of the bottom bracket: 68mmx35.4mm/2.677inx1.3937in
8. Gas Tank Cap included;
9. Kickstand Excluded
10. Diameter of downtube:42mm
11. Rear Width: 126mm
12. Requirement on switch of gas frame: 10*1.5mm
13. Required for seat post:27.2mm
14. Required for seat post clamp:31.8mm
15. Work with Disc Brake and Coaster Brake
16. For gas motorized bicycle only
17. PLEASE NOTE 1: the best safe speed if racing: 35km/h；If buyers' bike rear wheel is with quick release,we suggest buyers do not buy the gas frame unless buyers are professional
18. 3.4L Frame Youtube Link: https://youtu.be/XgKiZlsJhOA

26" Mag Wheels information:

• NOTE: It's inevitable that there will be SCRATCHES or PAINT PEELING during transportation, buy carefully if you are concerned.
• Before installing, please clean the metal scrap in hub firstly;
• Put engine oil or lubricating oil on the axle and the six screw holes to disc brake to prevent the screw from damaging!
• For Motorized Bikes: Mag Wheels can load Max 330lbs/150kg
• For Non-Motorized Bikes: Mag Wheels can load Max 385lbs/175kg
• Attention: excluding 6pcs allen bolts to mag wheel (if you find 6pcs bolts of disc brake rotor on, take off and throw off for safety consider),suggest allen bolts M5x23mm. if your sprocket is thicker than standard sprocket, we suggest bolts M5x25mm.
• Wheels' Front and Rear Dropout: 100x120mm
• Designed mainly for motorized bicycles;
• Do not need adapter, sprocket only needed;
• Brake Compatibility: Disc Brake and Caliper Brake;
• Light and very durable.
• 26"/26 inch Size Wheel;
• Axles included;
• Easy intall sprocket on mag wheel
• Rim's diameter is about 570mm, the diameter would be about 660mm after installed with tire and inner tube, that's called 26 inch wheel.
• Fit Flywheel with Size of thread :1.375"*24T
• Fit Rotary Single Speed Flywheel https://www.ebay.com/itm/283979527137
• Put grease/lubricating oil on thread of wheel to prevent damage of thread from Riding
• Wheels' Front and Rear Dropout: 100x120mm
• The hole spacing for front disc brakes of mag wheel to be added is 44mm
• The hole spacing for front and rear wheel both 44mm

CDHPOWER Bicycle Gas Frame 3.4L For 2-Stroke & 4-Stroke Engines.

Diameter of downtube:42mm;

Requirement on seatpost:27.2mm.

Requirement on headset size:1 1/8"; Gas Tank Cap included.

Bottom bracket 1.732" /44mm diameter;

Item Weight:

11 pounds
